  • SKU: BAM-650

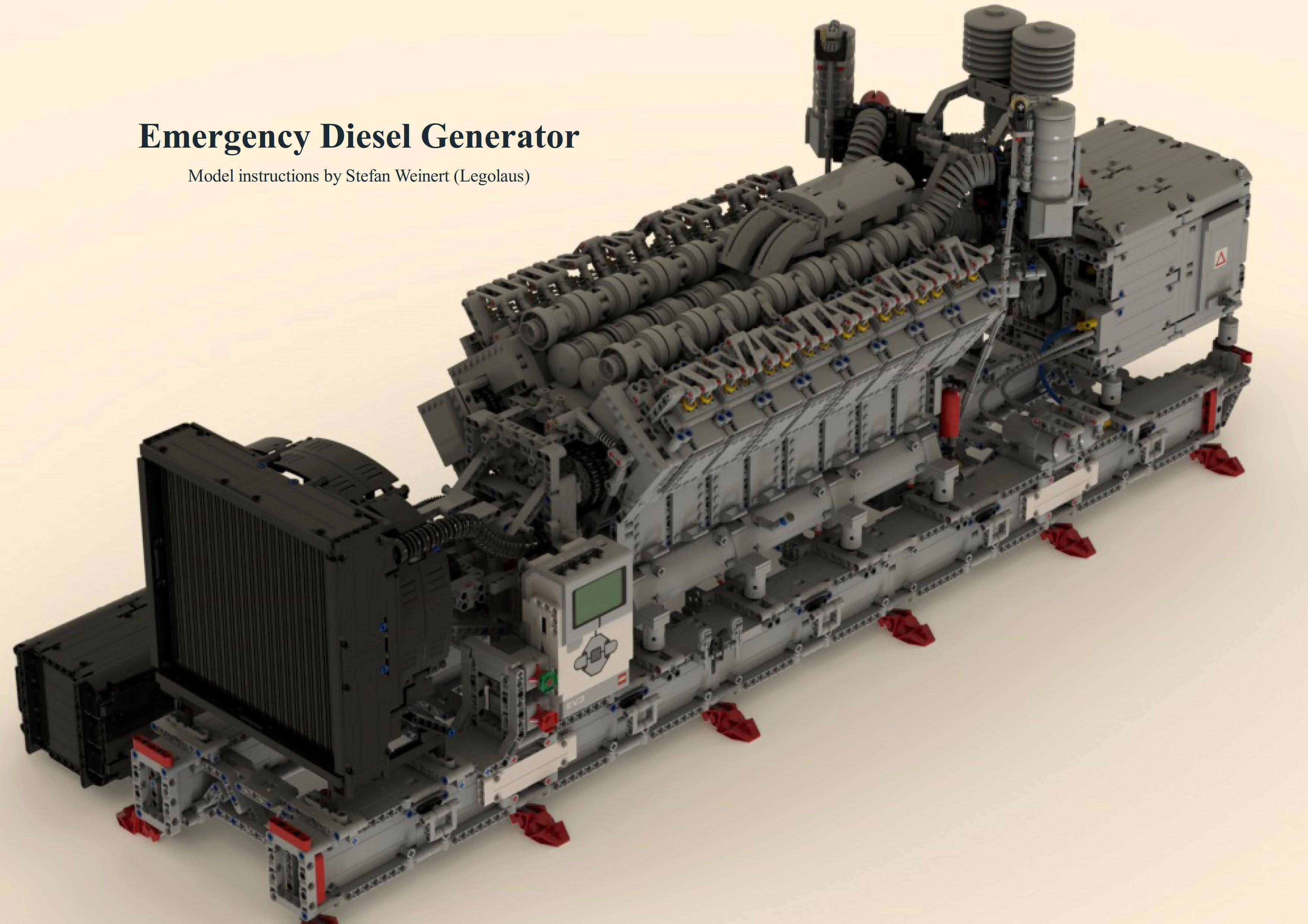

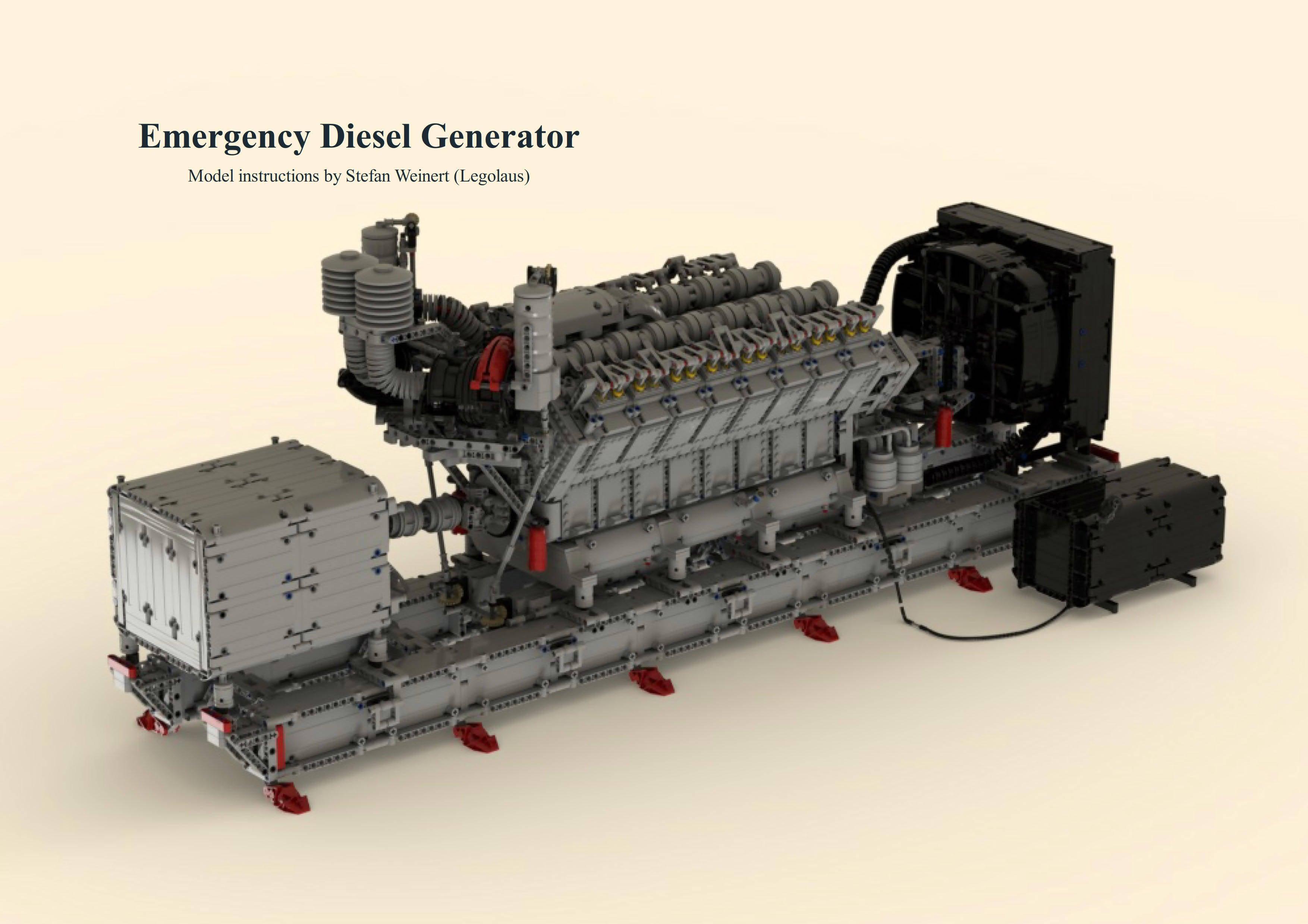

Emergency V16 Diesel Generator

€1.999,00

    Extra Information

    PART COUNT 8142
  • Vendor: BuildaMOC
  • Barcode:
DESCRIPTION

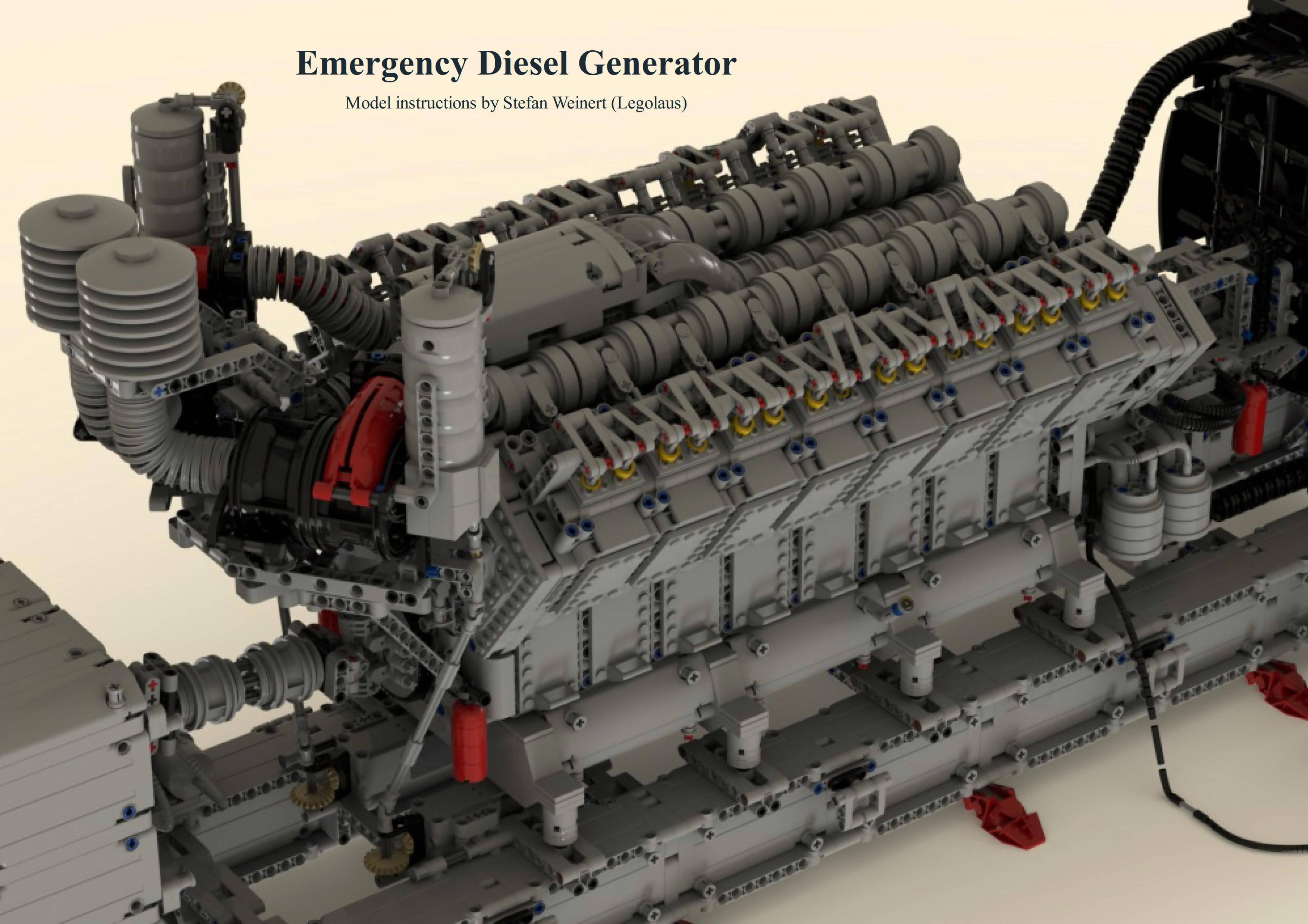

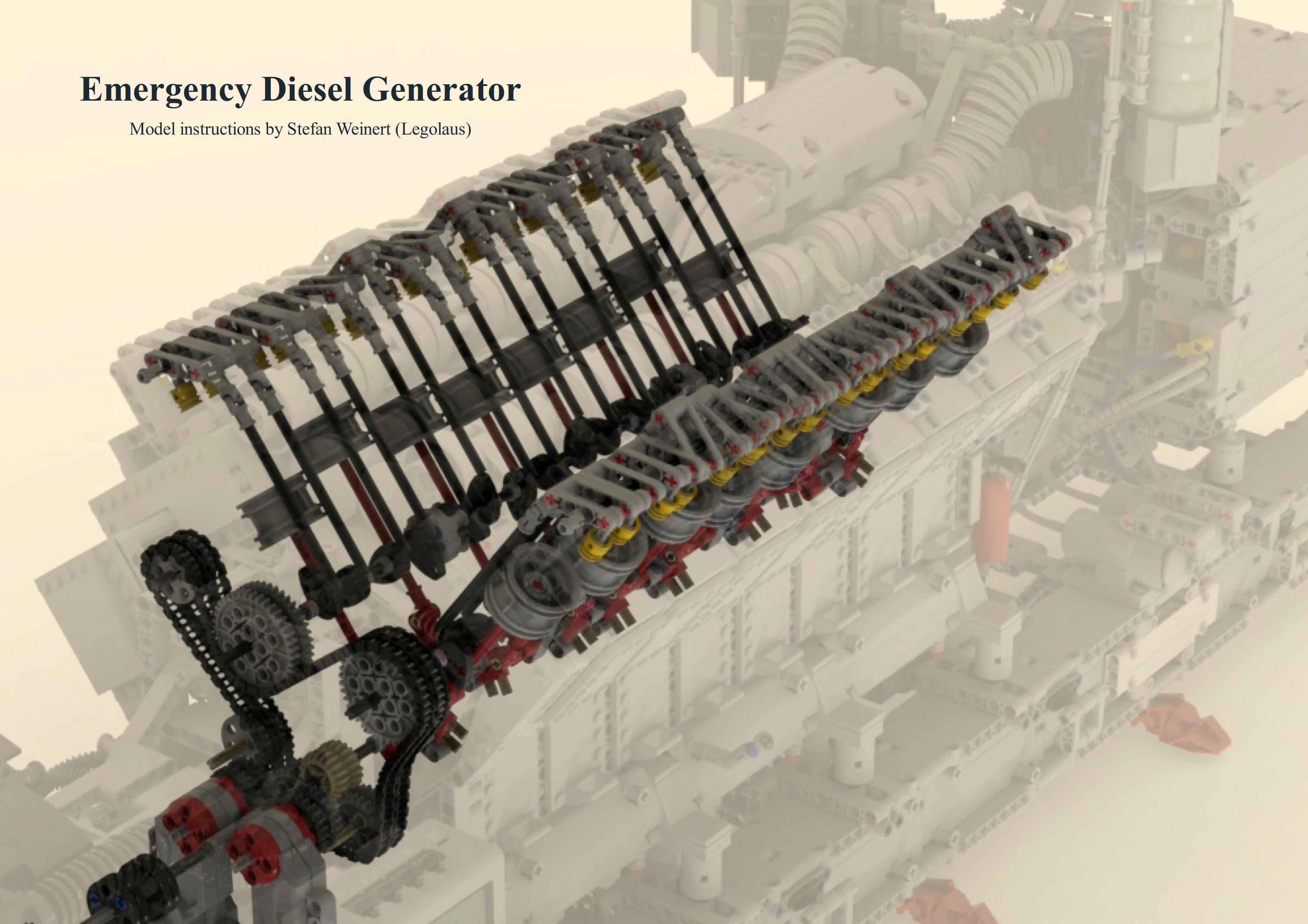

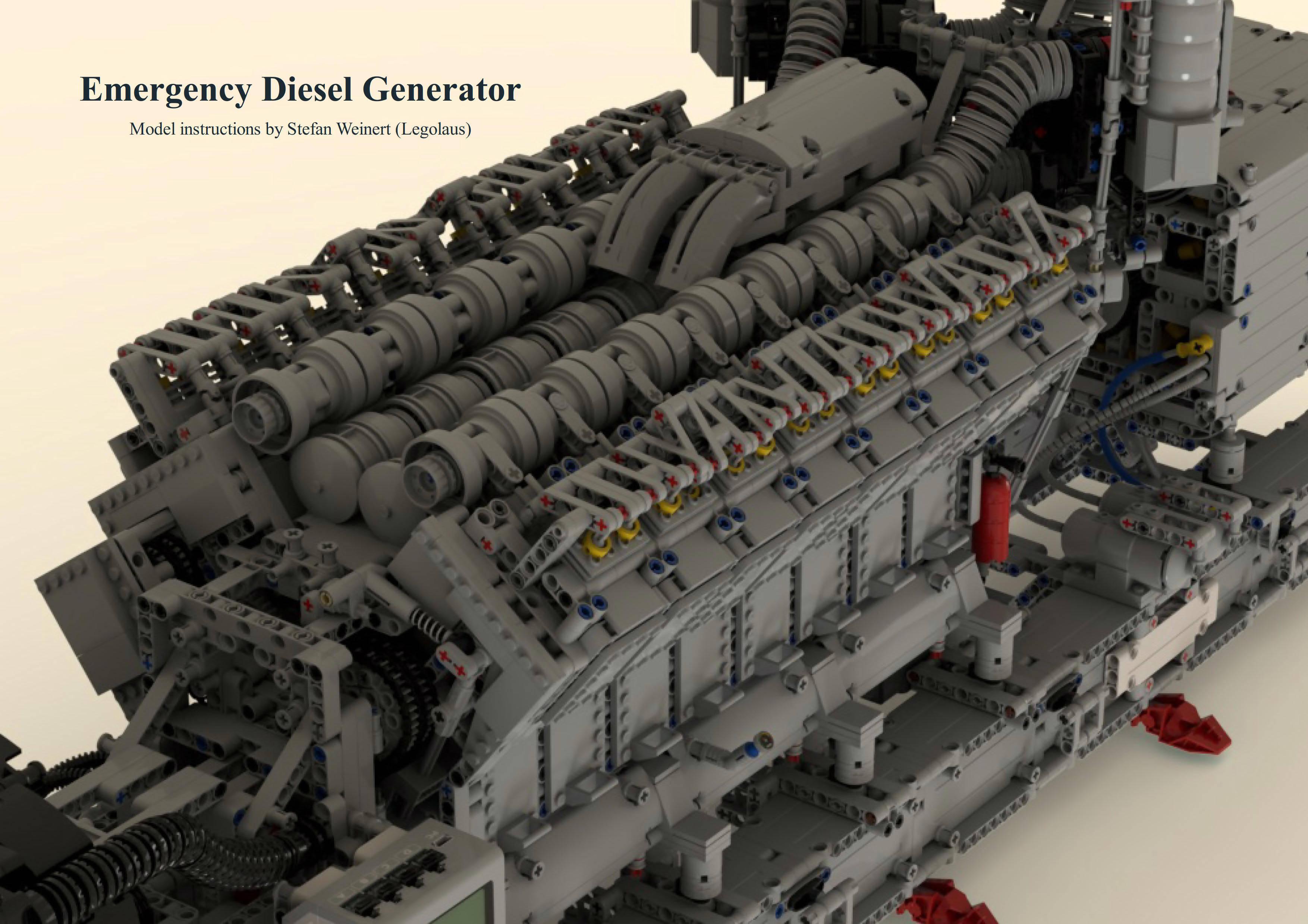

  • V16 Engine with working Pistons (Mack Rims), Crankshaft, two Camshafts, Valve Control via Chains and speed dependend controlled Exhaust Flaps
  • Dimensions: Length: 102,4cm; Width: 28,5cm; Height: 41cm; Weight: 7,72kg

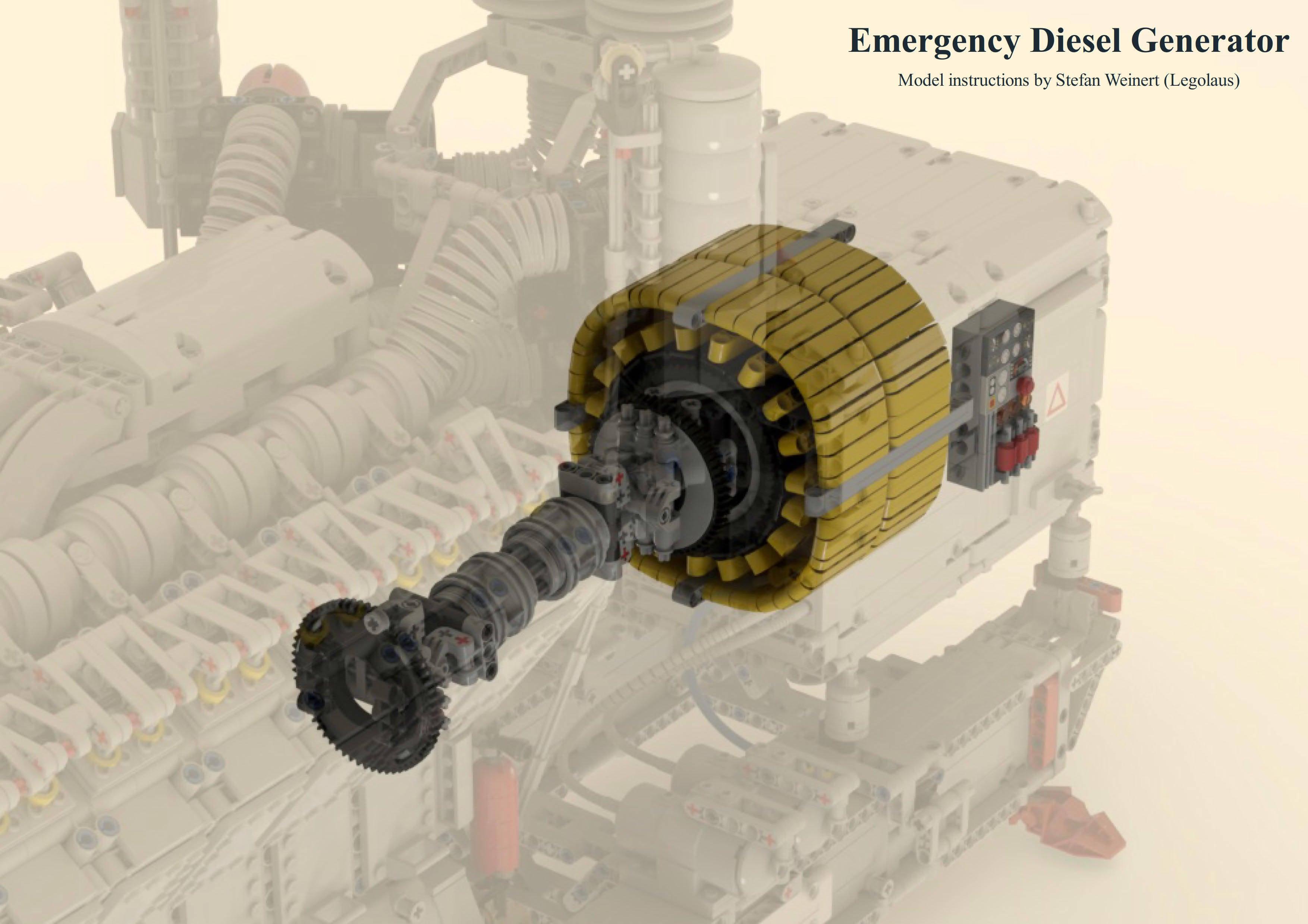

  • Generator House with Rotor, Stator, big Cardan and Maintenance Hatch with Controls

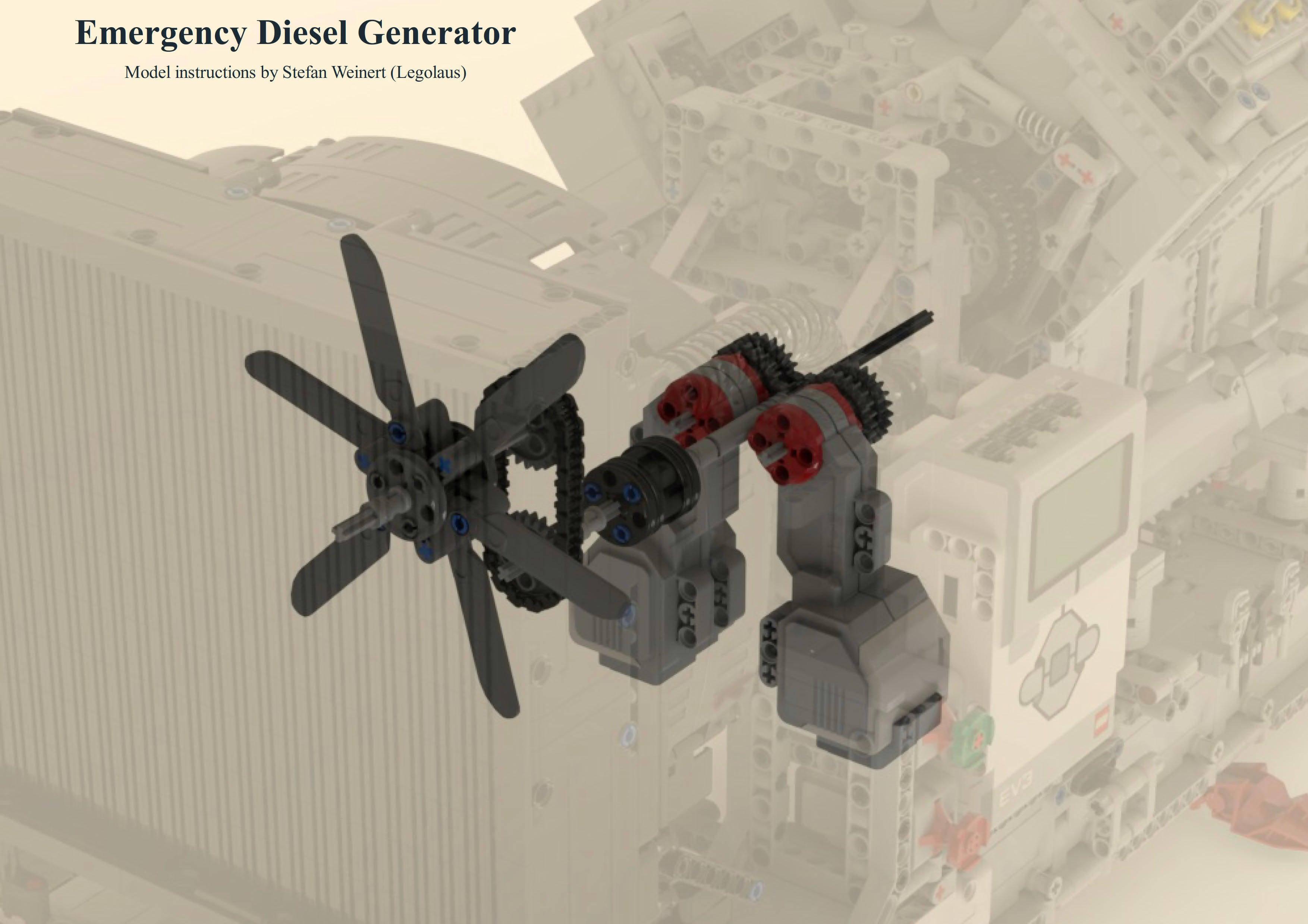

  • Cooler with working Fan Wheel and Hardy Coupling
  • Two big Mindstorms Motors for Drive

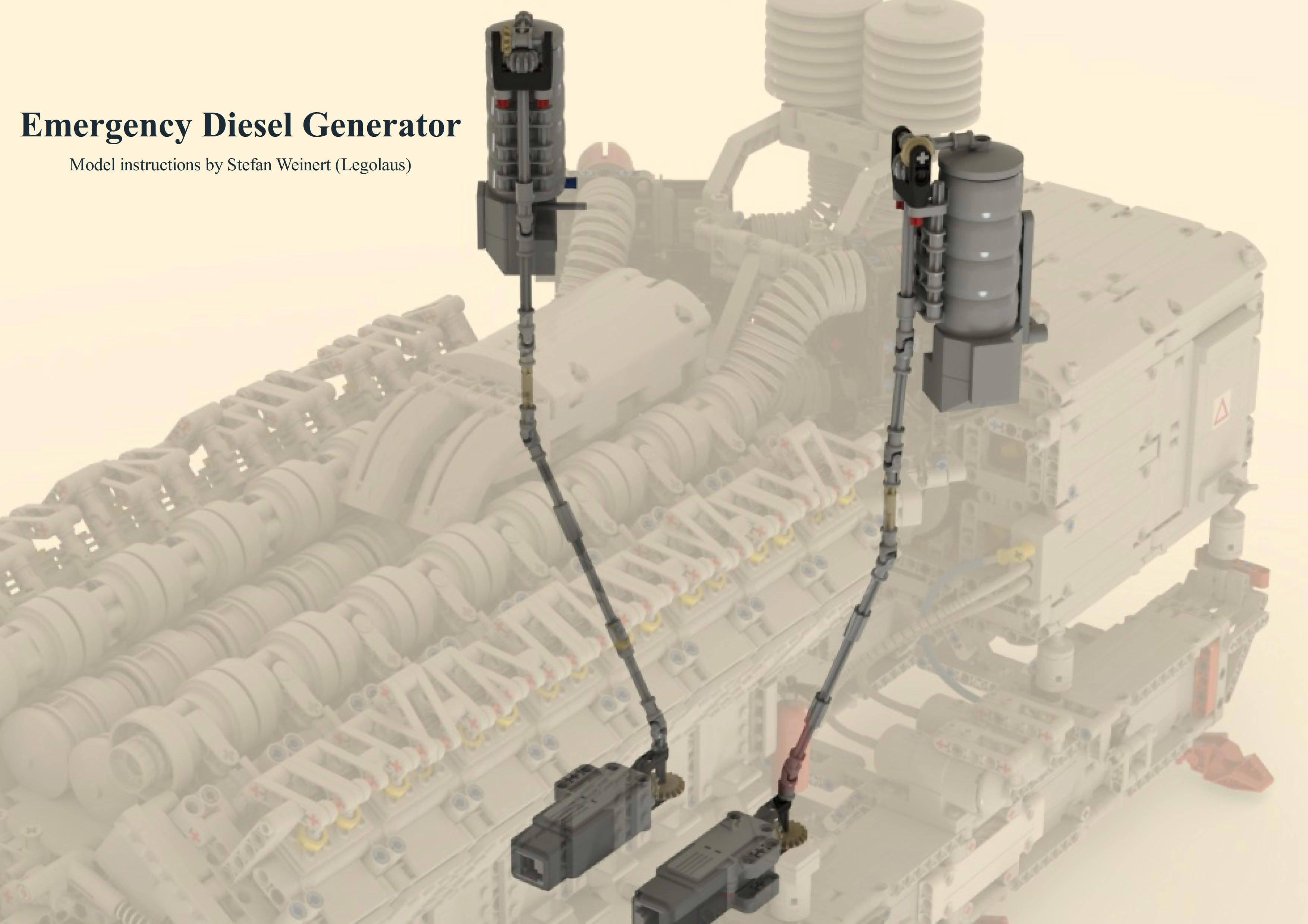

  • Two small Mindstorms Motors for Control Exhaust Flaps
  • Two external Pushbuttons for Start/Stop
  • Control of the Drive Motors in the variable Power Range of 30% (Idle) to 95% (Maximum Speed) (via Mindstorms EV3 Pushbuttons)
  • Control the Exhaust Flaps depending on the Speed (via Mindstorms EV3)
  • Start-Sequence with Starter-Noise ("difficult" Start-Up) (Sound-File from EV3)
  • Stop-Sequence (Speed is slowly reduced)
  • Display for Power an Current Speed (rpm)
  • Sound depending on the Speed (via Mindstorms EV3) and itself
  • Motor, Cooler and Generator House mounted on Rubber Buffers (for Damping)
  • It´s most similar to the Caterpillar CAT3616
  • Some Experience and Tools (Tweezers, Pliers for tight Spaces) are required for Assembly
  • A Traverse for Carry the Model will follow soon. It was already been build and successfully tested on a Crane
  • Attention: This Model does not generate any Electricity, it is a purely functional Model, it should simulate the essential Parts of the Motor
  • Scale 1:10 (estimated)
