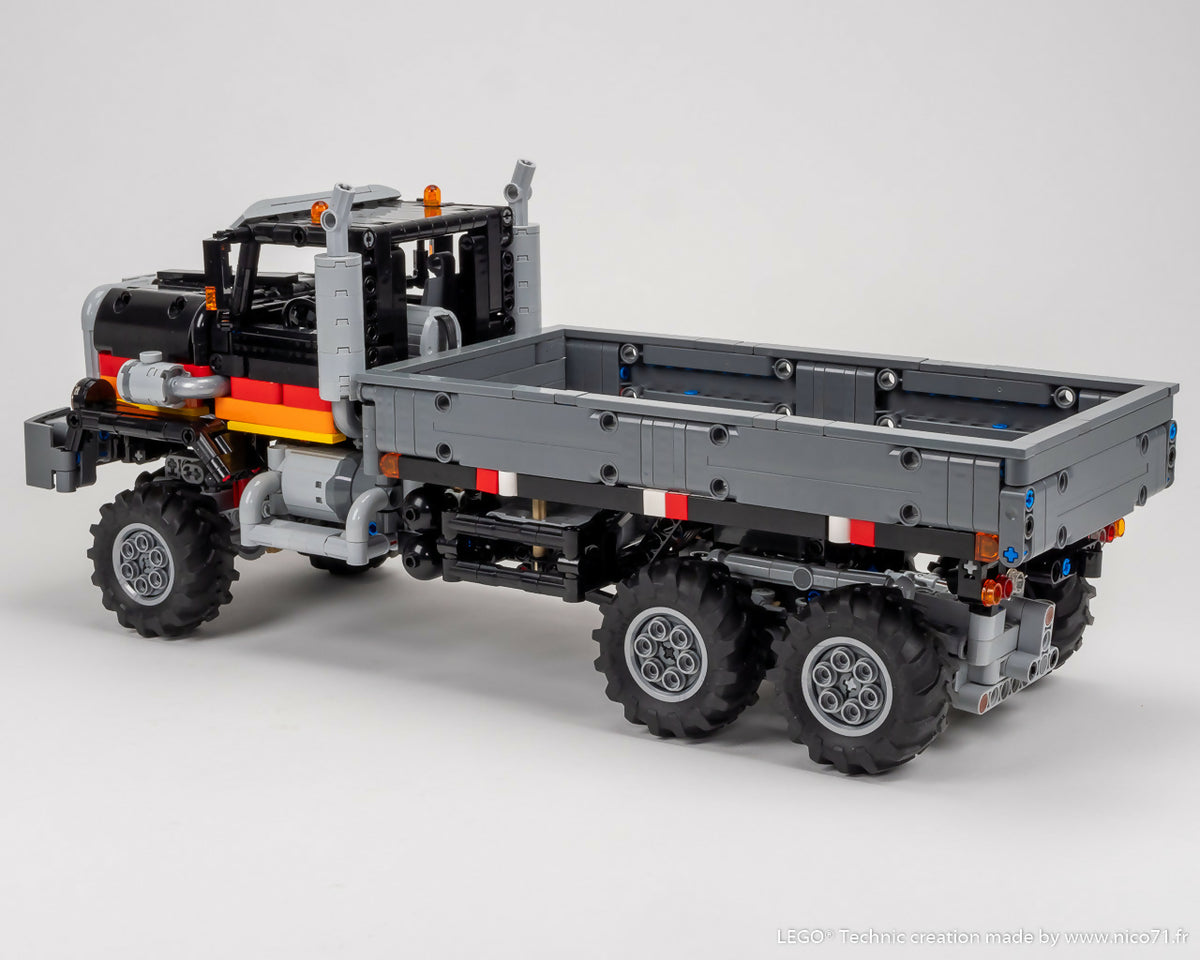

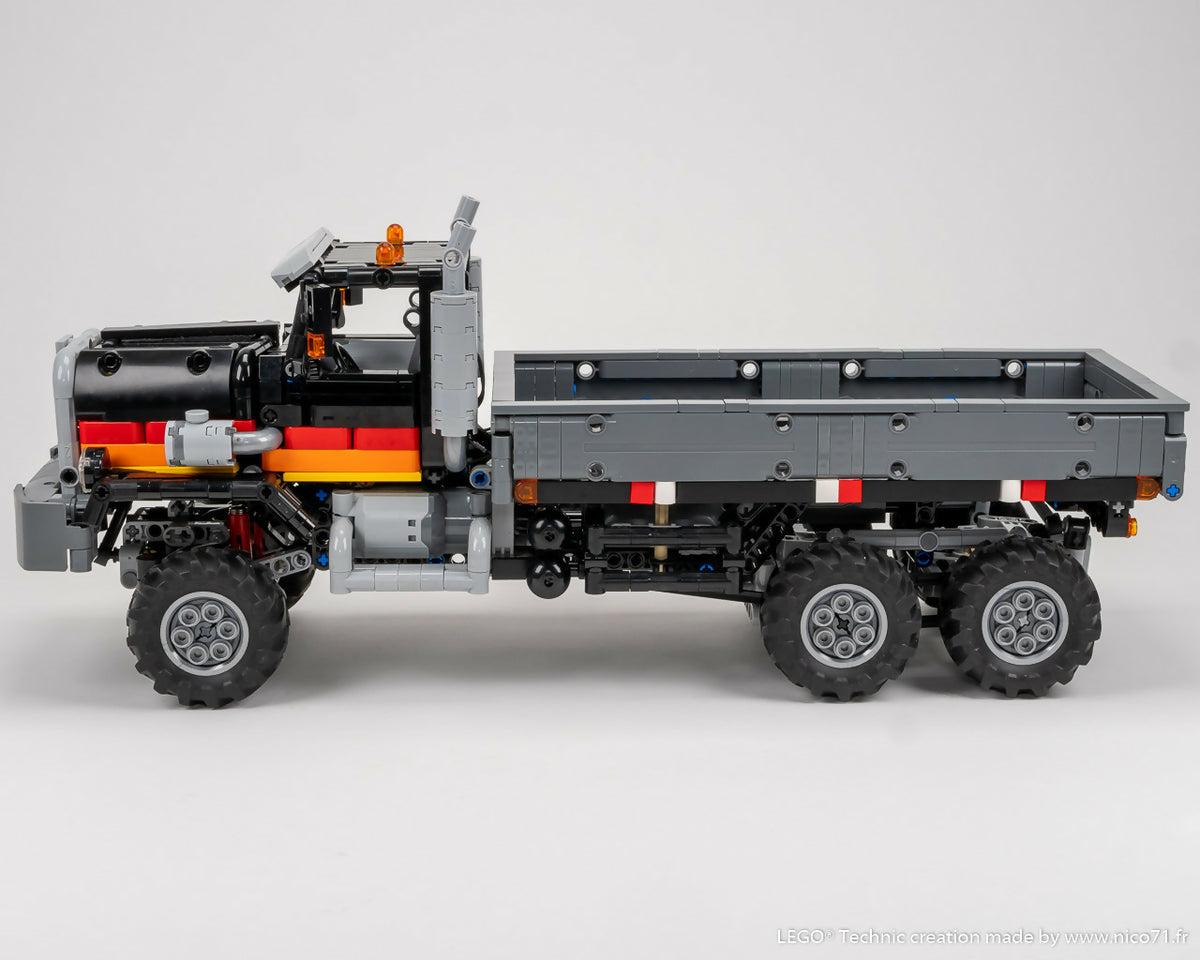

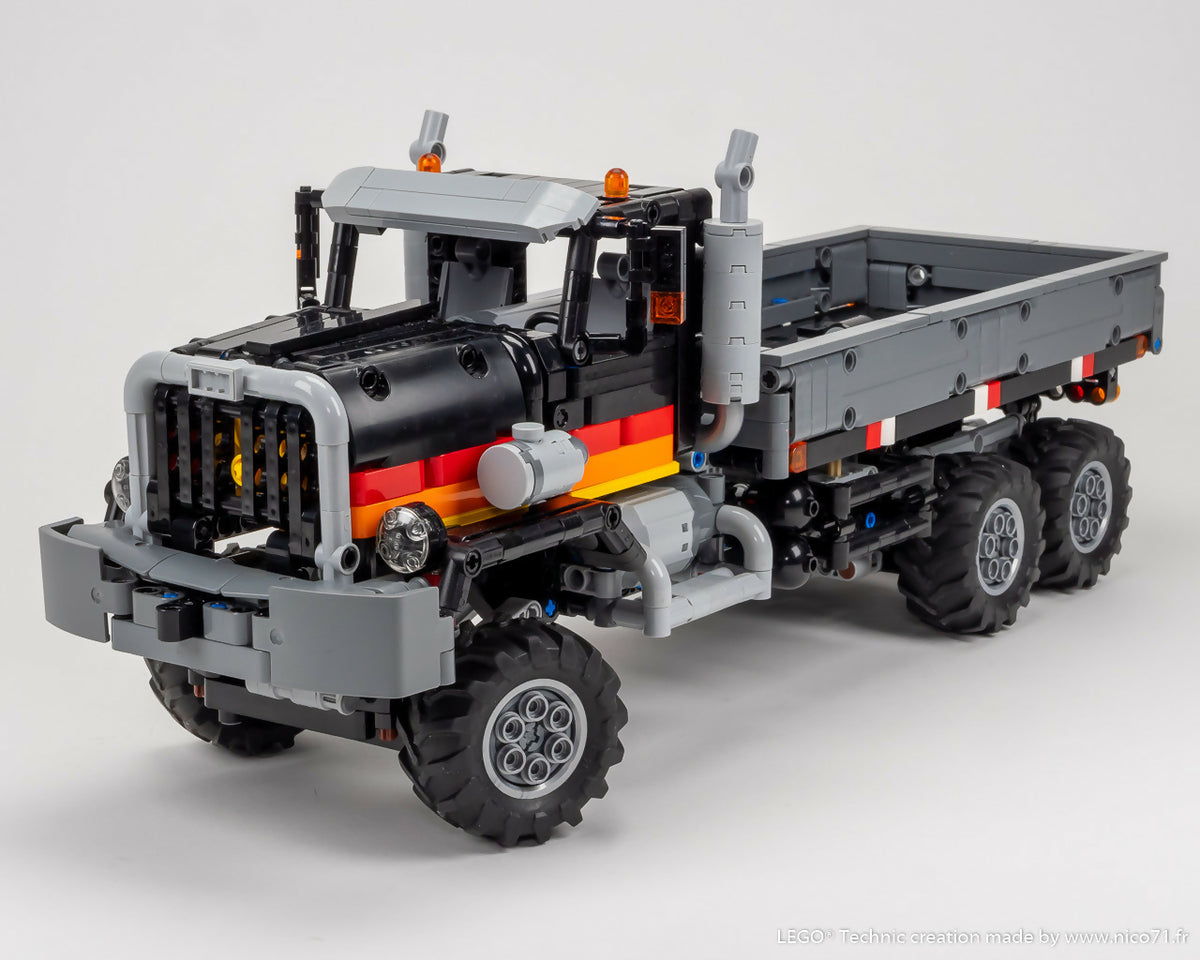

A 1:20 scale motorized offroad truck, equipped with 6×6 transmission with working fake engine, steering, full suspensions, manual gearbox, and openable elements. Its 80’s look, with its colorful side stripes, and the efficiency of the drivetrain makes it a vehicle as capable as it is beautiful !
Specs (motorized version)
- Offroad model based on International, Western Star and Scammell Truck from 70-80’s
- Dimensions : 41.5 x 13 x 17cm, Scale : 1/20, Wheels : Ø56mm
- Power functions Motors (2x L+1x Servo Motor), battery source : Buwizz 2.0 (smartphone needed)
- 6×6 drivetrain with no differential, primary reduction : 12/20 12/20 12/20
- Two speed gearbox (manually operated), ratio : 16/16 or 20/12

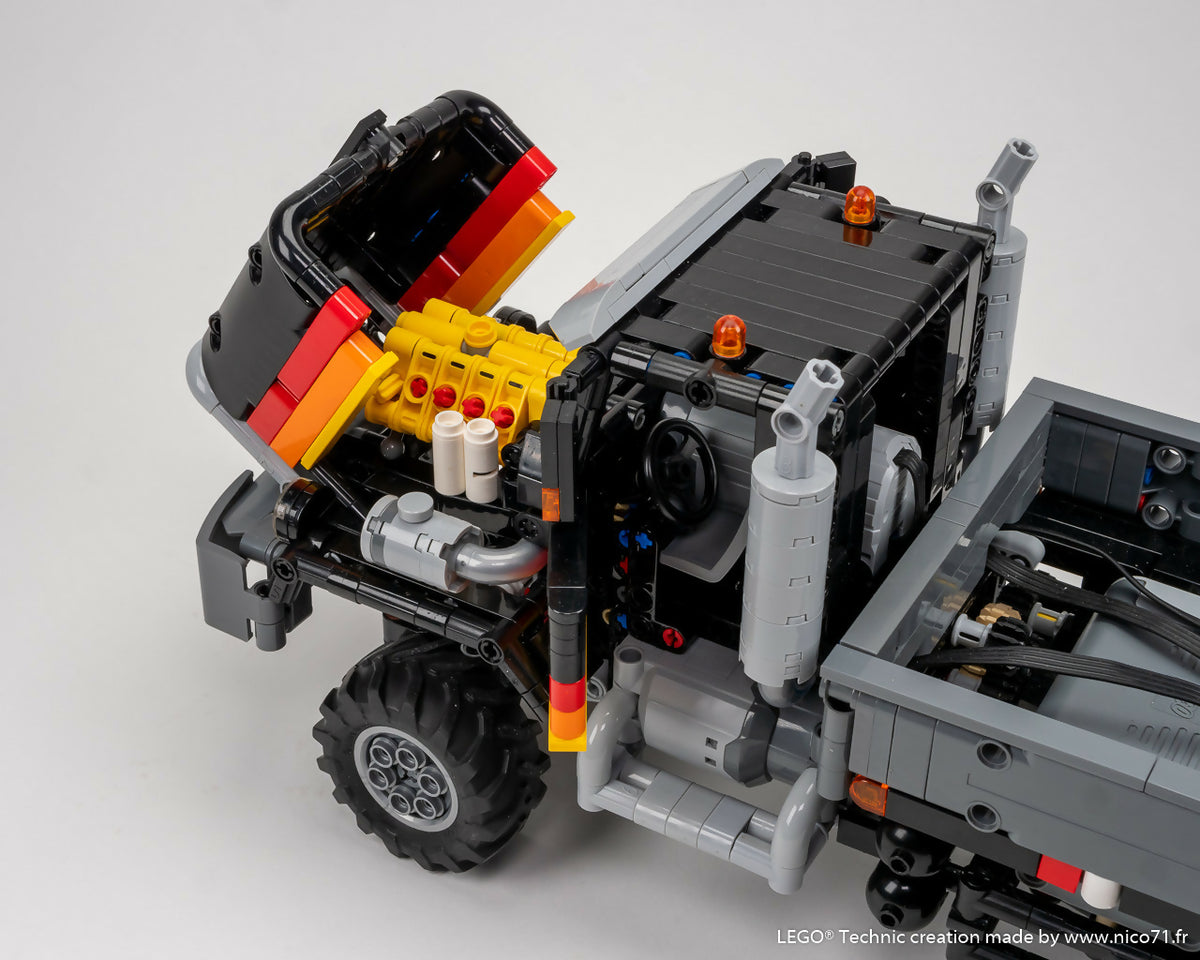

- Removable working CAT V8 fake engine
- Steering with rack and pinion, cv-join and oscillating bevel gearing
- Front suspension : live axle with 3 link arms, 2 spring and 1 Panhard rod

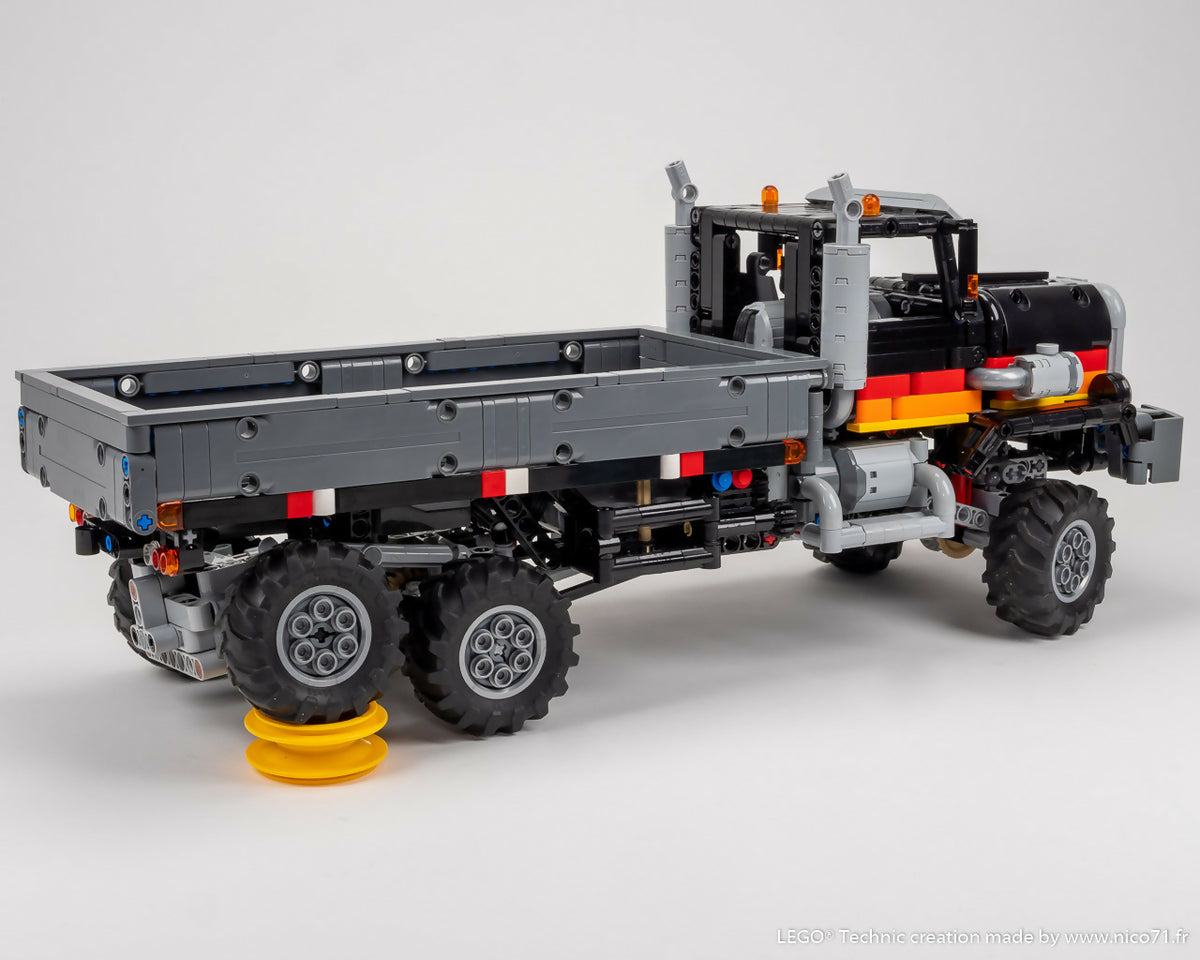

- Rear suspension : walking beam axle with parallel links and 2x Panhard rod
- Openable hood with two locking positions, openable doors

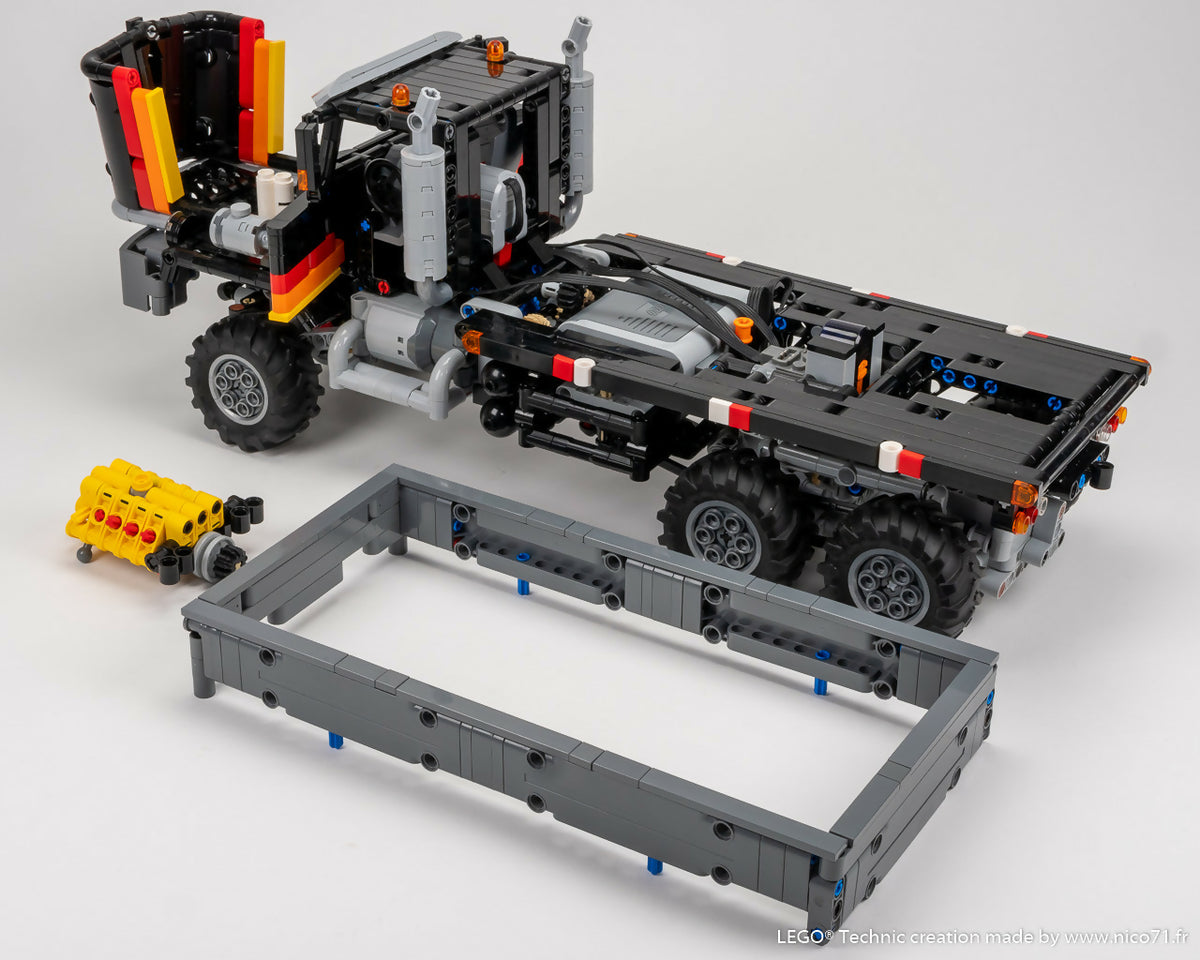

- Openable and removable sideboard bed, flatbed with end roller underneath
The kit from Buildamoc contains genuine parts and PDF instructions.
Two differents options are proposed :
- Motorized : complete kit with parts and genuine motorization as shown in the specs and video
- Without motors : same kits but without motors nor battery. That means you will need to own or order the additional needed motorization (2x L+ 1x Servo motor+ Battery/remote) from the supplier you want (LEGO, or alternate Chinese brand).
The model needs the motorization to work, there is no manual functions implemented except openable elements, without motors, it will be a display set unless you modify it.More infos, pictures and instructions preview at
nico71.fr
