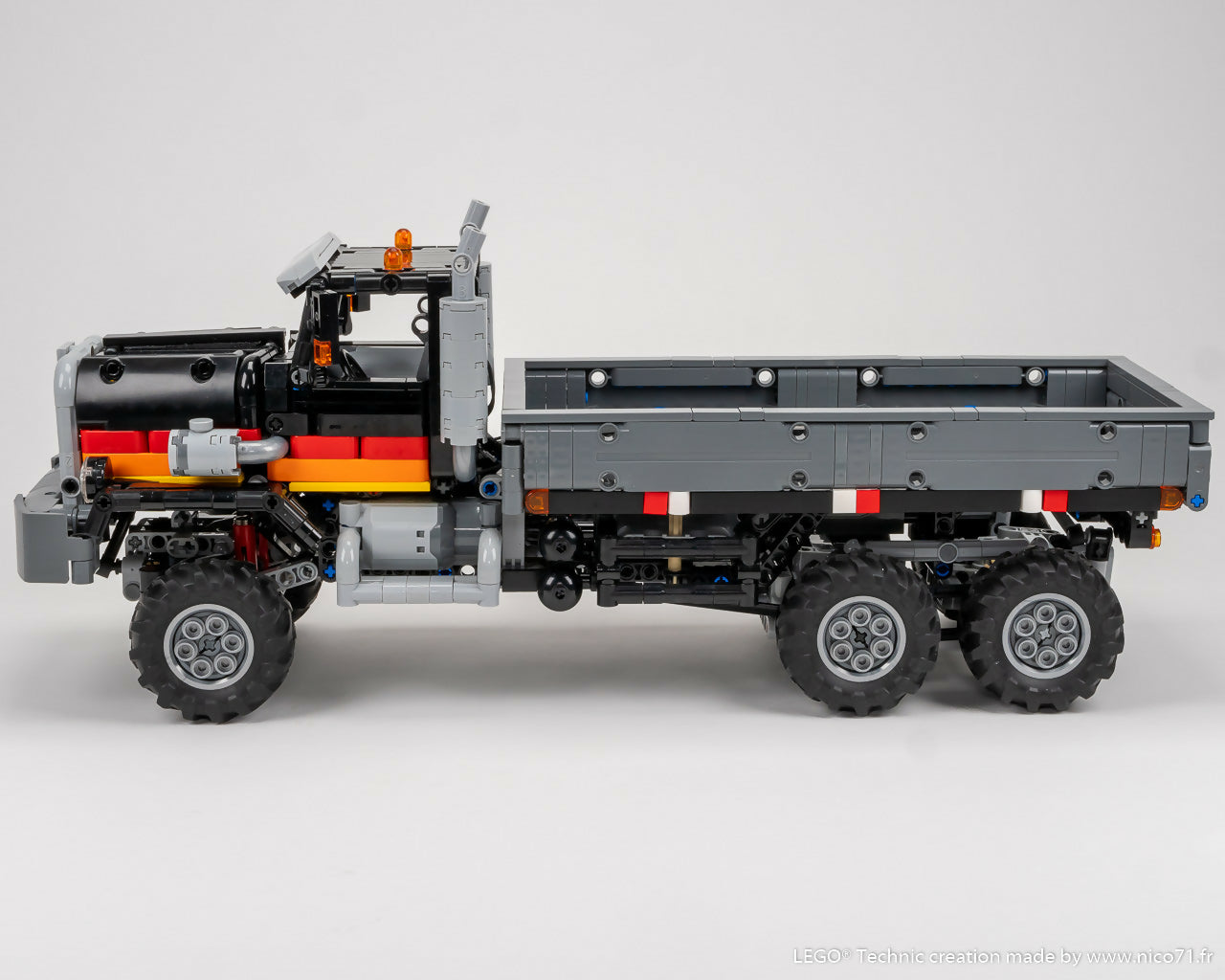

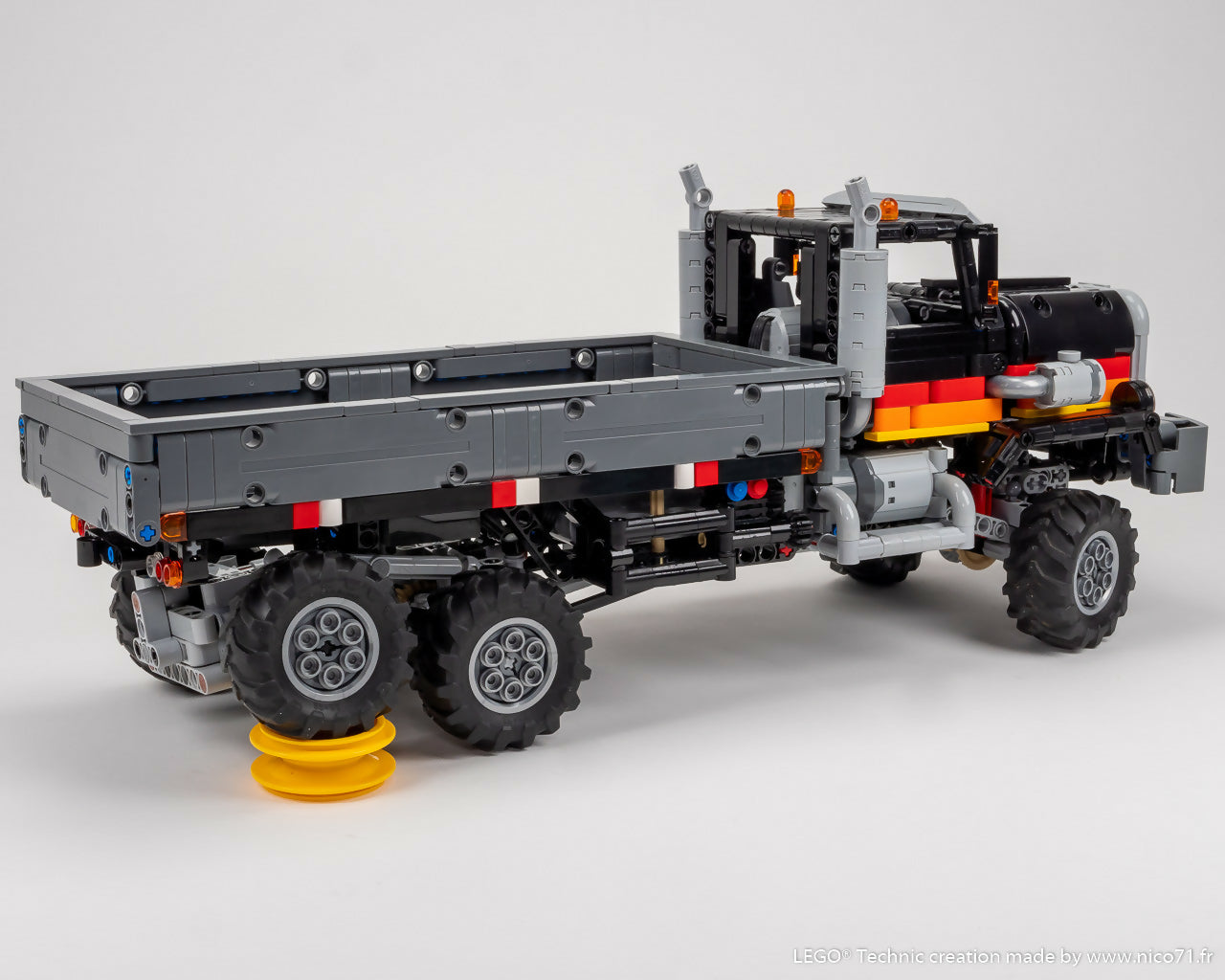

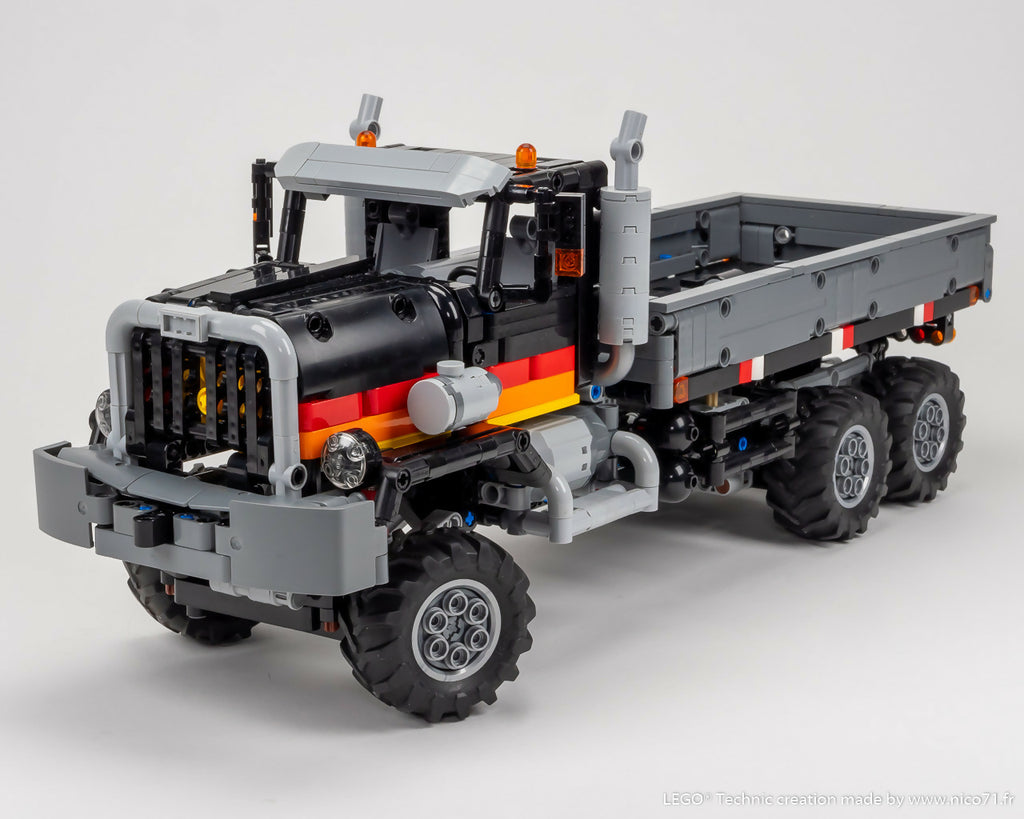

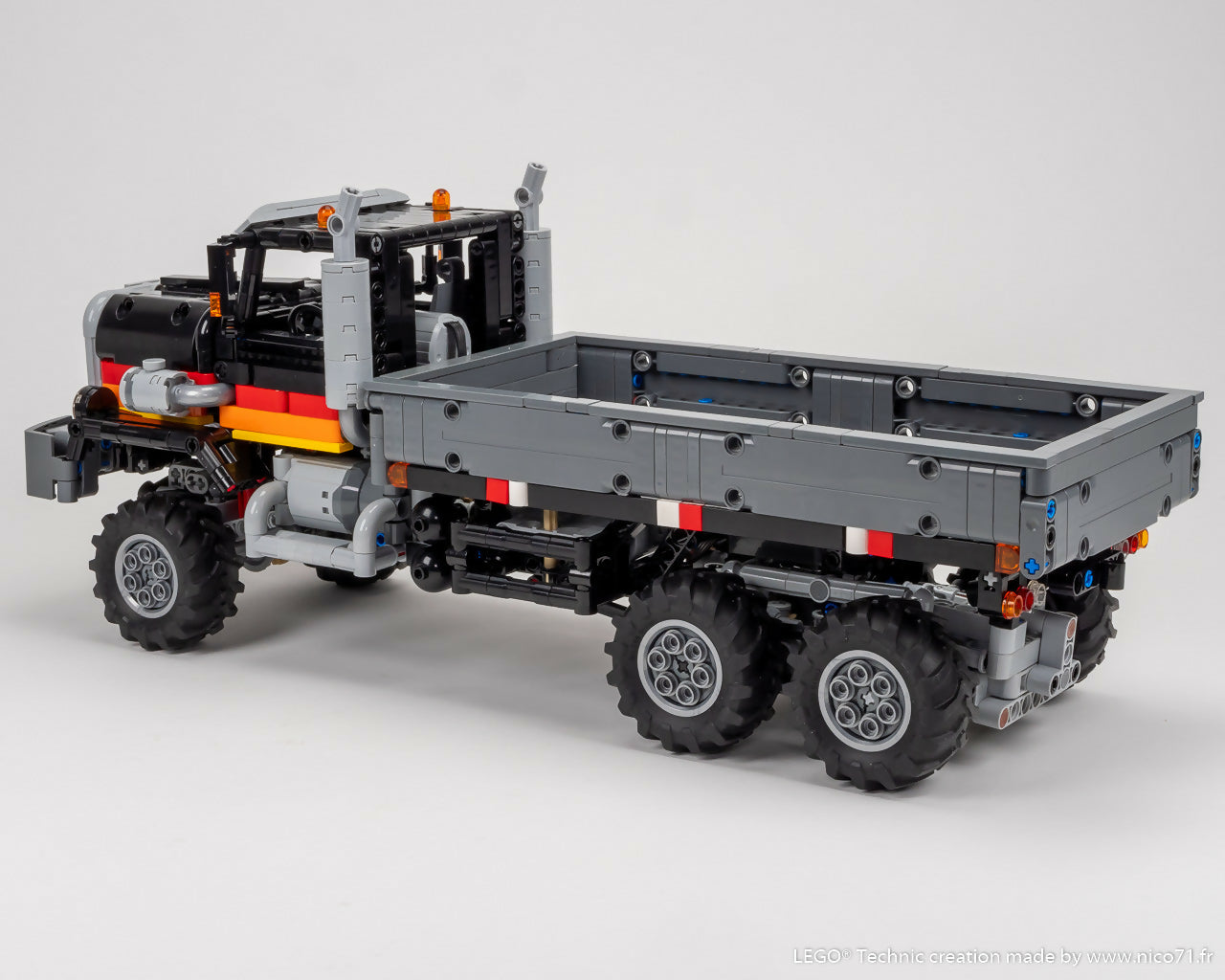

A 1:20 scale motorized offroad truck, equipped with 6×6 transmission with working fake engine, steering, full suspensions, manual gearbox, and openable elements. Its 80’s look, with its colorful side stripes, and the efficiency of the drivetrain makes it a vehicle as capable as it is beautiful !
Specs
- Offroad model based on International, Western Star and Scammell Truck from 70-80’s
- Dimensions : 41.5 x 13 x 17cm, Scale : 1/20, Wheels : Ø56mm
- Power functions Motors (2x L+1x Servo Motor), battery source : Buwizz (smartphone needed)
- 6×6 drivetrain with no differential, primary reduction : 12/20 12/20 12/20
- Two speed gearbox (manually operated), ratio : 16/16 or 20/12
- Removable working CAT V8 fake engine
- Steering with rack and pinion, cv-join and oscillating bevel gearing
- Front suspension : live axle with 3 link arms, 2 spring and 1 Panhard rod
- Rear suspension : walking beam axle with parallel links and 2x Panhard rod

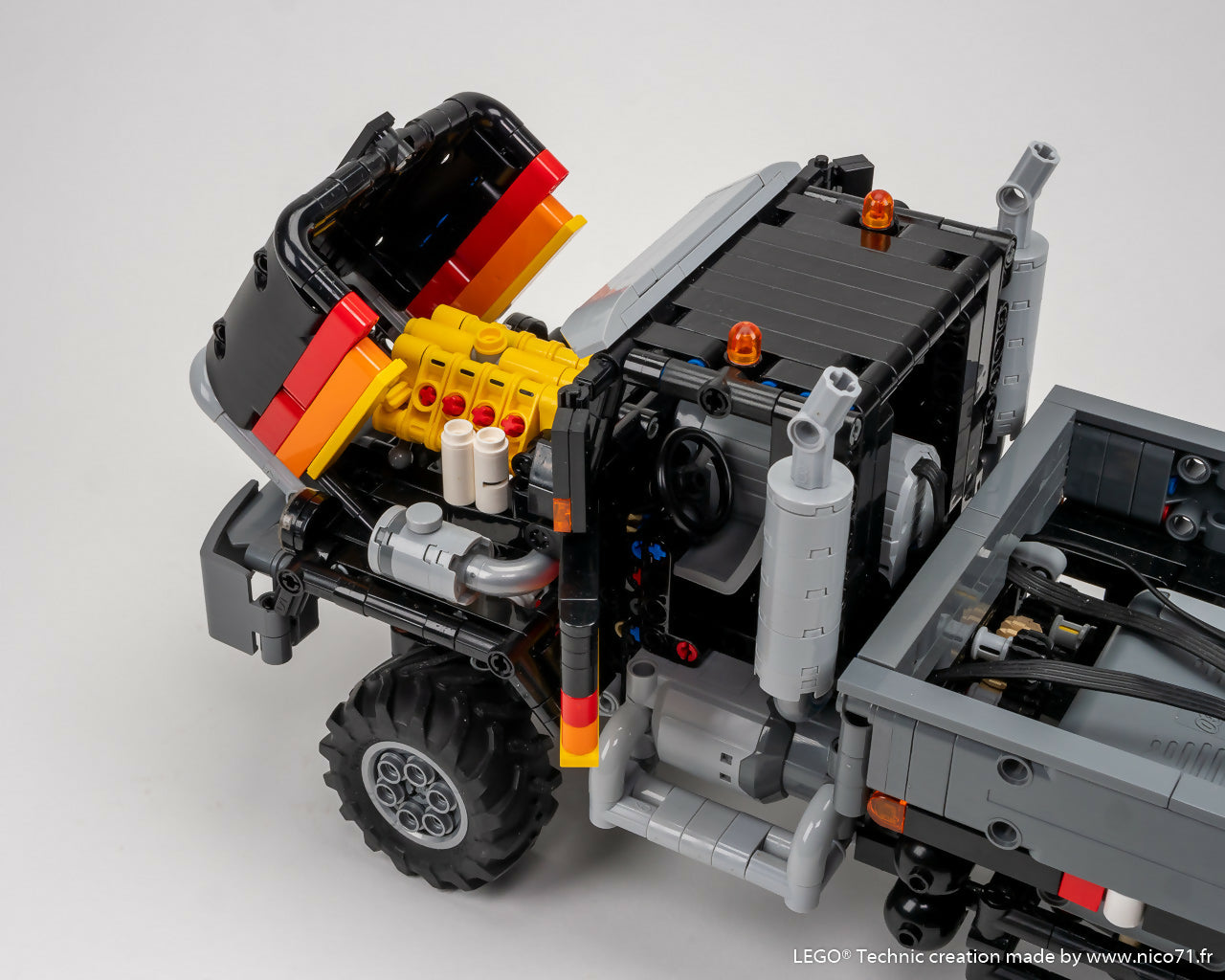

- Openable hood with two locking positions, openable doors

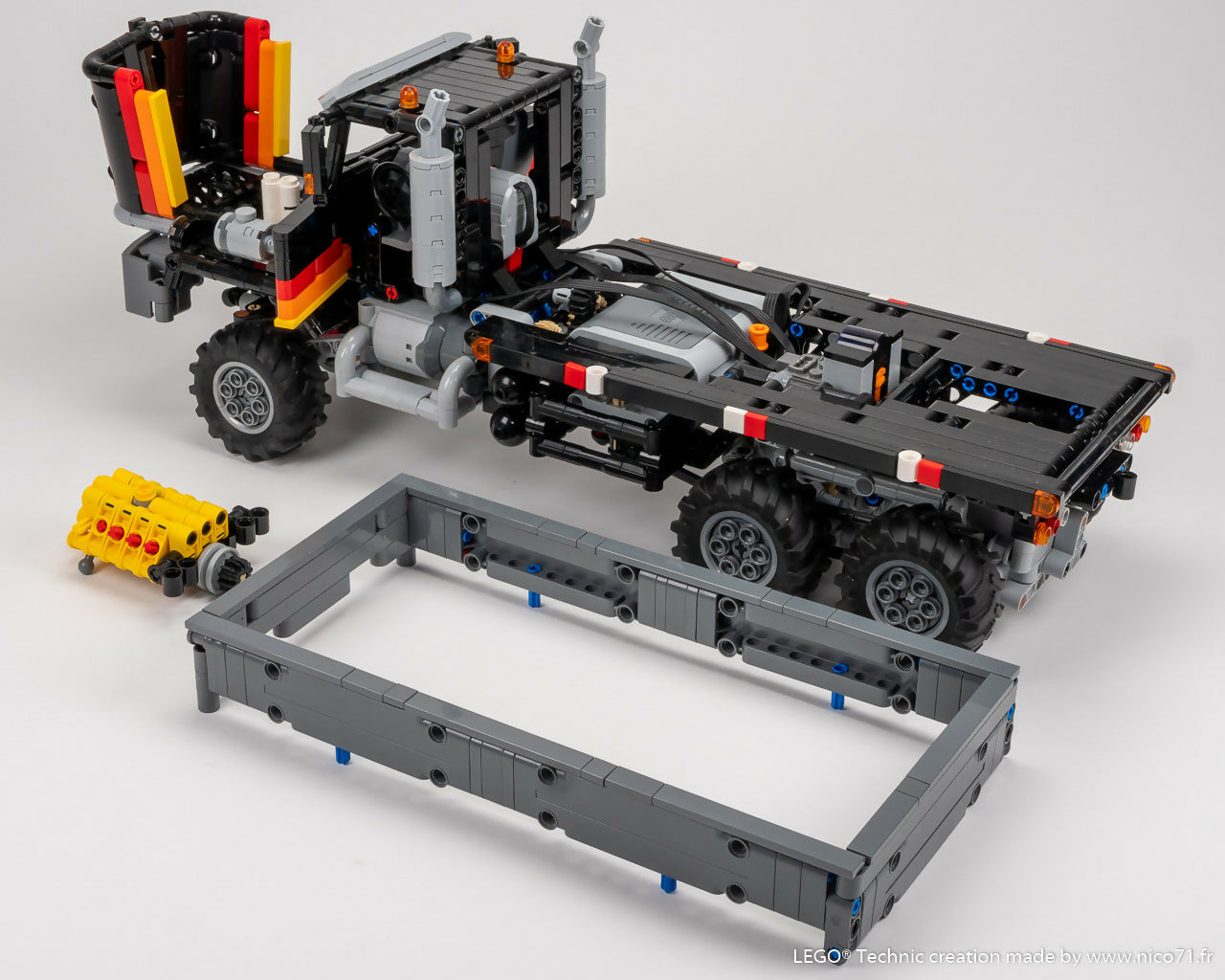

- Openable and removable sideboard bed, flatbed with end roller underneath
More infos, pictures and instructions preview at
nico71.fr
See it in action :
